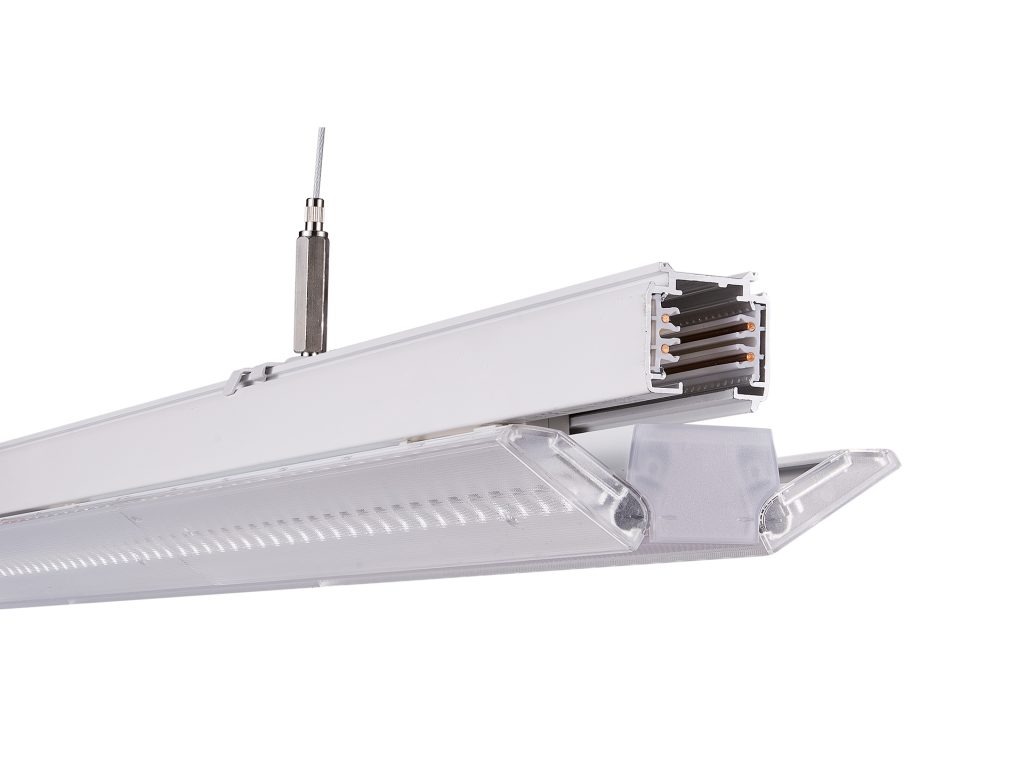

T-LINE TRACK LINEAR LIGHT
Choose your product version
24W ON/OFF
50W ON/OFF
60W ON/OFF
24W DALI 2.0
50W DALI 2.0
60W DALI 2.0
T-LINE TRACK LINEAR LIGHT | 24W ON/OFF
Product benefits

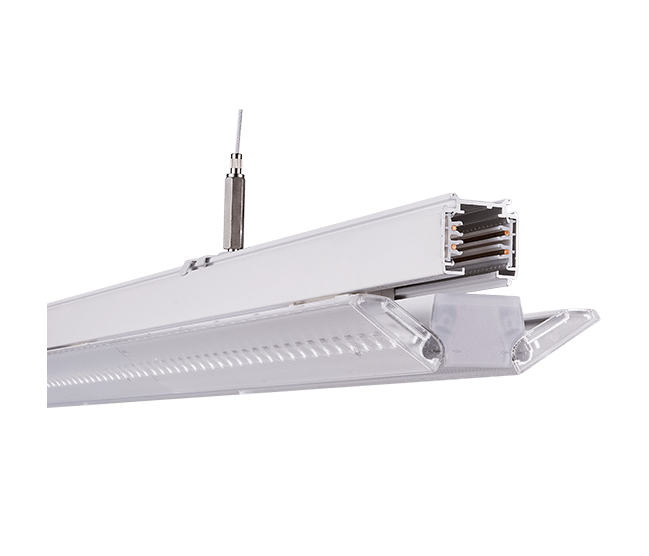

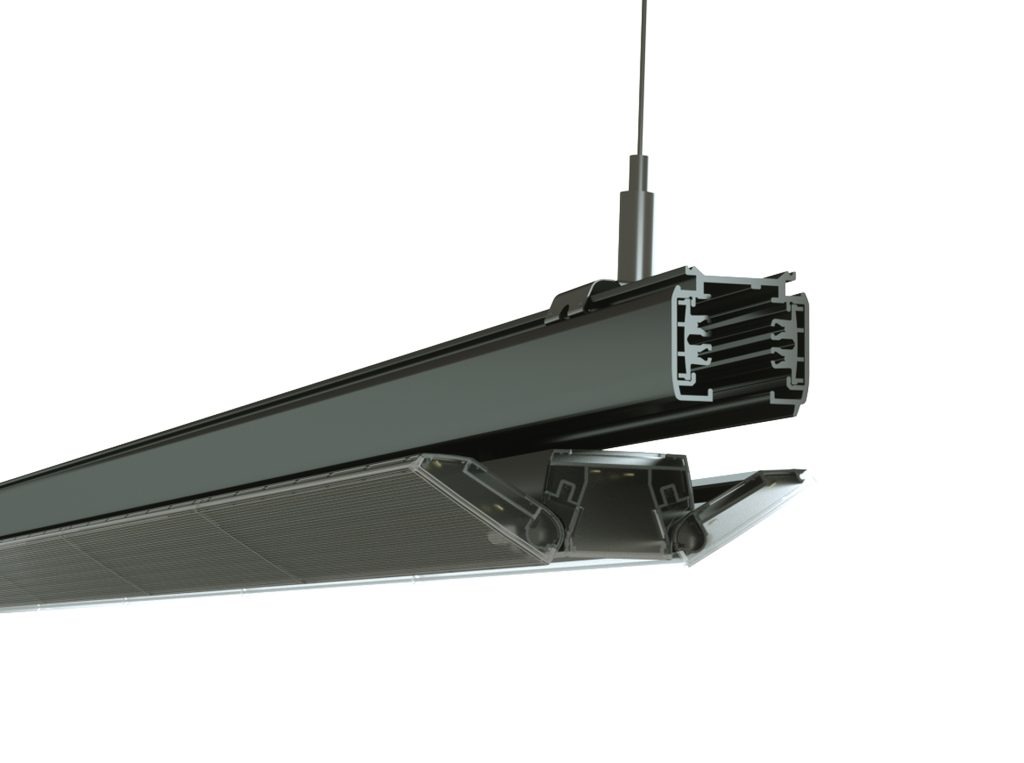

- White / Black housing
- 600mm 24W On/Off light module
- With DIP power switch 35, 40, 45, 50W
- 200-240V driver & adaptor for 4 wire 3 phase Europe track rail system
- 30° @C0，90° @C90 / 30° @C0，30° @C90
- 180lm Per Watt @840
- Single CCT 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Application: Supermarket, Retail Store, Car Showroom, Grocery Store etc...
- Double Wing Tiltable Design, Typical for Shelf and Aisle Lighting
T-LINE TRACK LINEAR LIGHT | 50W ON/OFF
Product benefits
- White / Black housing
- 600mm 50W On/Off light module
- With DIP power switch 35, 40, 45, 50W
- 200-240V driver & adaptor for 4 wire 3 phase Europe track rail system
- 30° @C0，90° @C90 / 30° @C0，30° @C90
- 180lm Per Watt @840
- Single CCT 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Application: Supermarket, Retail Store, Car Showroom, Grocery Store etc...
- Double Wing Tiltable Design, Typical for Shelf and Aisle Lighting
T-LINE TRACK LINEAR LIGHT | 60W ON/OFF
Product benefits
- White / Black housing
- 1500mm 60W On/Off light module
- With DIP power switch 35, 40, 45, 50W
- 200-240V driver & adaptor for 4 wire 3 phase Europe track rail system
- 30° @C0，90° @C90 / 30° @C0，30° @C90
- 180lm Per Watt @840
- Single CCT 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Application: Supermarket, Retail Store, Car Showroom, Grocery Store etc...
- Double Wing Tiltable Design, Typical for Shelf and Aisle Lighting
T-LINE TRACK LINEAR LIGHT | 24W DALI
Product benefits
- White / Black housing
- 600mm 24W DALI light module
- With DIP power switch 35, 40, 45, 50W
- 200-240V driver & adaptor for 4 wire 3 phase Europe track rail system
- 30° @C0，90° @C90 / 30° @C0，30° @C90
- 180lm Per Watt @840
- Single CCT 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Application: Supermarket, Retail Store, Car Showroom, Grocery Store etc...
- Double Wing Tiltable Design, Typical for Shelf and Aisle Lighting
T-LINE TRACK LINEAR LIGHT | 60W DALI
Product benefits
- White / Black housing
- 600mm 50W DALI light module
- With DIP power switch 35, 40, 45, 50W
- 200-240V driver & adaptor for 4 wire 3 phase Europe track rail system
- 30° @C0，90° @C90 / 30° @C0，30° @C90
- 180lm Per Watt @840
- Single CCT 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Application: Supermarket, Retail Store, Car Showroom, Grocery Store etc...
- Double Wing Tiltable Design, Typical for Shelf and Aisle Lighting
T-LINE TRACK LINEAR LIGHT | 60W DALI
Product benefits
- White / Black housing
- 1500mm 60W DALI light module
- With DIP power switch 35, 40, 45, 50W
- 200-240V driver & adaptor for 4 wire 3 phase Europe track rail system
- 30° @C0，90° @C90 / 30° @C0，30° @C90
- 180lm Per Watt @840
- Single CCT 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Application: Supermarket, Retail Store, Car Showroom, Grocery Store etc...
- Double Wing Tiltable Design, Typical for Shelf and Aisle Lighting
VIDEO DEMONSTRATION
Learn more details about the strength of CoreShine T-Line LED Track Linear Light through the following video.
Browse through CoreShine’s similar products from the T series LED linear lamp family, and discover an array of exceptional offerings from our T series LED Track Linear Light that will perfectly align with your needs.
TECHNICAL DATA
VALUE
Luminaire colour
RAL9016 White，RAL9017 Black
Outer Dimension
L600 * W120 * H13mm / L1200 * W120 * H13mm / L1500 * W120 * H13mm
Input Power
18-24W ( @ L600mm, 2W/Gear )
35-50W ( @ L600mm, 5W/Gear )
45-60W ( @ L1500mm, 5W/Gear )
Input Voltage
220-240V for 4/6 wire Track or 100-277V for 3 wire Track
PF ( @230V, 50Hz, full load )
0.95
Luminous Efficacy
180lm/W
CCT
2700 / 3000 / 4000 / 5000 / 6000 / 6500K
CRI
>80Ra or >90Ra
SDCM
<3
Light Distribution Curve
30° @C0，90° @C90 / 30° @C0，30° @C90
Function
On/Off or DALI 2.0
IP Level
IP40
Ambient Temperature Ta ( @life time 50,000 h)
-25 ~ 40°
Rated Life L80/B50 @25°C
100,000 hrs
Warranty
5 years
RELEVANT PRODUCT
Watch the following video demonstration and see what makes the CoreShine daylight motion sensor the inevitable step for ultimate energy efficiency.
CONTACT US
CONTACT US
Bldg 6, Cereals Group Industrial Park, 299#, GuanPing Road, NanDaFu Community,GuanLan, LongHua District, ShenZhen, GuangDong, China
Tel:+86-755-2559 9666 Tel:+86-755--2962 5810
Fax:+86-755--2557 76666
E-mail:[email protected]
ABOUT US
- PROFILE
- QUALITY
PRODUCTS
- EUROPE
- AMERICA
- SMART CONTROL
- NEW
PROJECTS
- COMMERCIAL
- INDUSTRIAL
- AUTO INDUSTRY
- OTHERS
CONTACT
VIDEO
SHENZHEN CORESHINE OPTOELECTRONICS CO.,LTD
LIGHT PANEL
Individual.Lens.Optic
- IK04
- SP-30° / NR-60° / WD-90° / Double Asymmetric

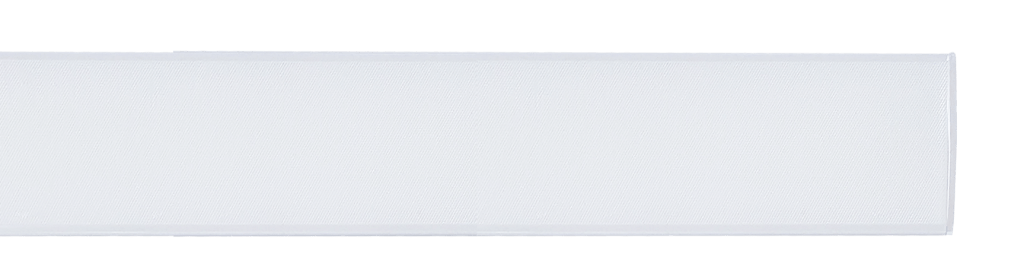

Diffuser
- IK08
- FD-120°

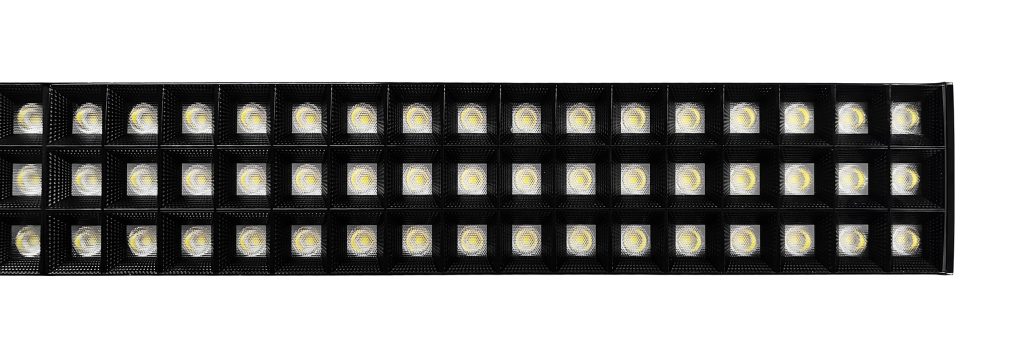

Louvre
