U-LINE INDIRECT LINEAR TRUNKING SYSTEM
Choose your product version
30W 0-10V
45W 0-10V
60W 0-10V
60W 0-10V
90W 0-10V
120W 0-10V

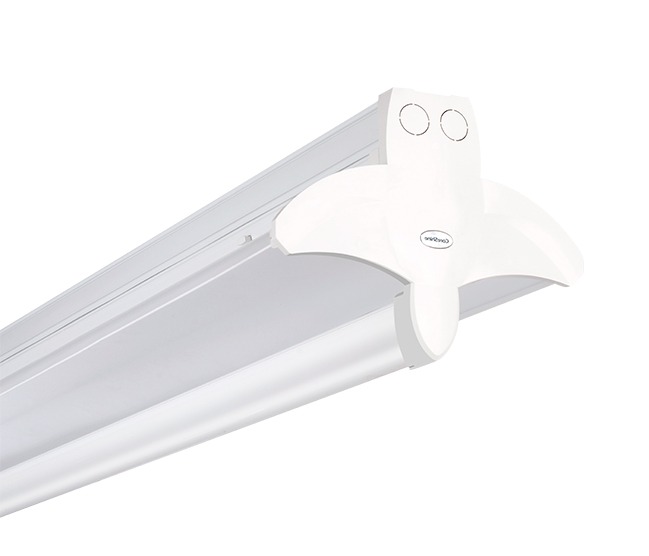

U-LINE INDIRECT LINEAR TRUNKING SYSTEM | 30W
The U-LINE indirect LED linear lighting system offers numerous benefits.
Product benefits
- 1200mm - 30W AC100-277V
- Indirect light source that creates a sophisticated improession while delivering an impressive 150lm/w
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- 10% uplight available, can make the whole environment light uniformity very good
- Narrow/flood/ flood lighting
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Senor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Maximum total power up to 1600W per power continuous line

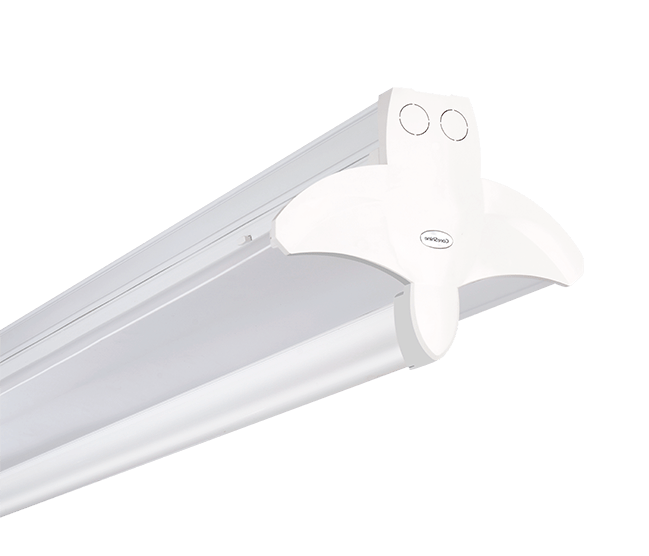

U-LINE INDIRECT LINEAR TRUNKING SYSTEM | 40W
The U-LINE indirect LED linear lighting system offers numerous benefits..
Product benefits
- 1200mm - 40W AC100-277V
- Indirect light source that creates a sophisticated improession while delivering an impressive 150lm/w
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- 10% uplight available, can make the whole environment light uniformity very good
- Narrow/flood/ flood lighting
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Senor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 1600W per line

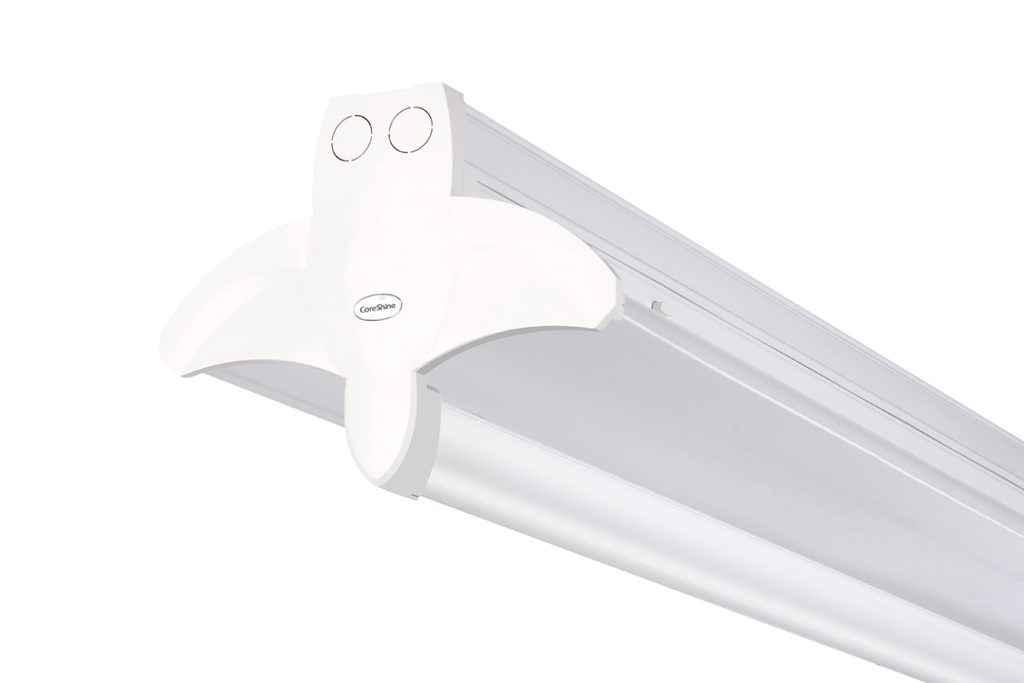

U-LINE INDIRECT LINEAR TRUNKING SYSTEM | 60W
The U-LINE indirect LED linear lighting system offers numerous benefits
Product benefits
- 1200mm - 60W AC100-277V
- Indirect light source that creates a sophisticated improession while delivering an impressive 150lm/w
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- 10% uplight available, can make the whole environment light uniformity very good
- Narrow/flood/ flood lighting
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Senor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 1600W per line
U-LINE INDIRECT LINEAR TRUNKING SYSTEM | 60W
The U-LINE indirect LED linear lighting system offers numerous benefits
Product benefits
- 2400mm - 60W AC100-277V
- Indirect light source that creates a sophisticated improession while delivering an impressive 150lm/w
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- 10% uplight available, can make the whole environment light uniformity very good
- Narrow/flood/ flood lighting
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Senor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 1600W per line
U-LINE INDIRECT LINEAR TRUNKING SYSTEM | 90W
The U-LINE indirect LED linear lighting system offers numerous benefits
Product benefits
- 2400mm - 90W AC100-277V
- Indirect light source that creates a sophisticated improession while delivering an impressive 150lm/w
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- 10% uplight available, can make the whole environment light uniformity very good
- Narrow/flood/ flood lighting
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Senor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 1600W per line
U-LINE INDIRECT LINEAR TRUNKING SYSTEM | 120W
The U-LINE indirect LED linear lighting system offers numerous benefits
Product benefits
- 2400mm - 120W AC100-277V
- Indirect light source that creates a sophisticated improession while delivering an impressive 150lm/w
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- 10% uplight available, can make the whole environment light uniformity very good
- Narrow/flood/ flood lighting
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Senor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 1600W per line
VIDEO DEMONSTRATION
Learn more details about the structure and functions of the U-Line LED linear trunking system through the following video
Browse the following components details and discover the comprehensive solutions the U-line bring
TECHNICAL DATA
VALUE
Luminaire colour
RAL9016 White
Outer Dimension
L1200 * W236 * H183mm
Input Power
30W, 45W, 60W @ L1200mm
60W, 90W, 120W @ L2400mm
Input Voltage
220-240V
PF ( @230V, 50Hz, full load )
0.95
Luminous Efficacy
150lm/W
CCT
2700 / 3000 / 4000 / 5000 / 6000 / 6500K
CRI
>80Ra or >90Ra
SDCM
<3
Light Distribution Curve
NR-60°，FD-120°，FU-120°
Function
0-10V
IP Level
IP40
Ambient Temperature Ta ( @life time 50,000 h)
-25 ~ 40°
Rated Life L80/B50 @25°C
50,000 hrs
Warranty
5 years
PROJECT CASES
U-Line has been widely used in Supermarket, Warehouse, Workshop, Car Showroom, Data Center etc... Applications, Check some of real cases.
CONTACT US
CONTACT US
Bldg 6, Cereals Group Industrial Park, 299#, GuanPing Road, NanDaFu Community,GuanLan, LongHua District, ShenZhen, GuangDong, China
Tel:+86-755-2559 9666 Tel:+86-755--2962 5810
Fax:+86-755--2557 76666
E-mail:[email protected]
ABOUT US
- PROFILE
- QUALITY
PRODUCTS
- EUROPE
- AMERICA
- SMART CONTROL
- NEW
PROJECTS
- COMMERCIAL
- INDUSTRIAL
- AUTO INDUSTRY
- OTHERS
CONTACT
VIDEO
SHENZHEN CORESHINE OPTOELECTRONICS CO.,LTD
TRUNKING RAIL
5 WIRE
- L1 L2 L3 N PE
- 5*2.5mm²
- 3 phase selectable
- on/off basic lighting
8 WIRE
- L1 L2 L3 N PE D+ D- CHR
- 6*2.5 mm² + 2*1.5 mm²
- 3 phase selectable
- 2 DALI control cables
- 1 internal battery emergency power supply
12 WIRE
- L1 L2 L3 N PE D+ D- CHR EL1 EN1 EL2 EN2
- 10*2.5 mm² + 2*1.5 mm²
- 3 phase selectable
- 2 DALI control cables
- 1 internal battery emergency power supply
- 2 independent emergency power supply circuits
LUMINAIRE

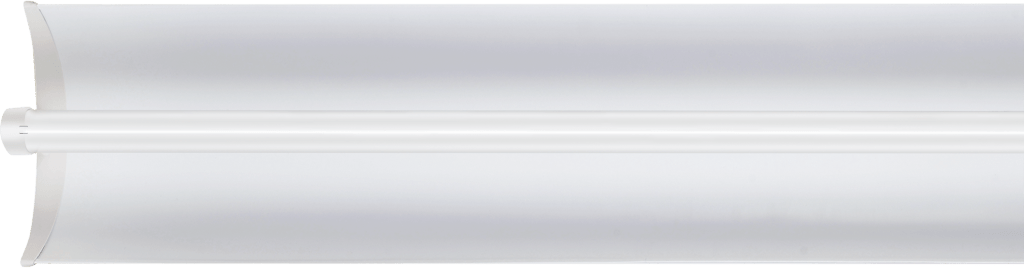

Reflector
- FLAT (FD) - 120°
- Up 0% | Down 100%

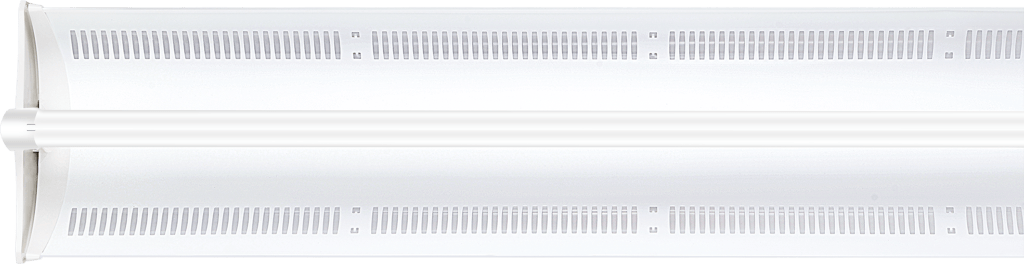

Reflector
- FLAT (FU) - 120°
- Up 10% | Down 90%

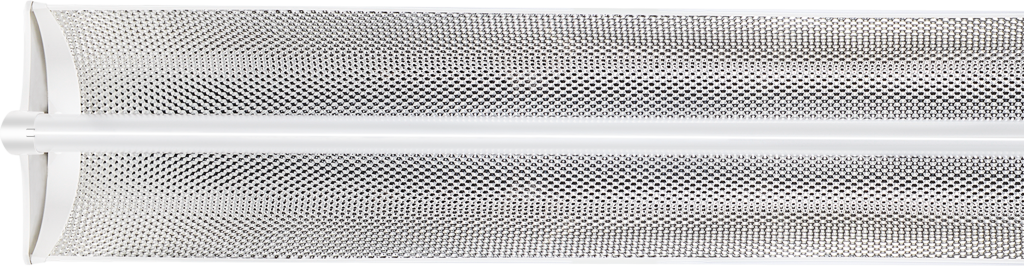

Reflector
- NARROW (NR) - 60°
- Up 0% | Down 100%
- UGR<19
FUNCTION MODULE
Spotlight Module
- Plug & Play function module
- Integrated with universal 3/4/6 wire track rail
- Size in 600,1500mm module
- Ideal for combining accent and general lighting
Sensor Module
- Plug & Play function module
- Microwave sensor for motion detection
- Detective range up to 8m or 15m optional
- Uses existing DALI or 1-10V rail wiring
Exit Sign Module
- Plug & Play function module
- Flexible structure to hang exit sign
- Uses existing rail wiring
ACCESSORIES
Power Feed In
Feed In Box
Feed In Connector
Mounting Kit
Suspension Cord
Suspension Chain
Suspension Rod
Surface Mounted
Node Connector
L Connector
T Connector
X Connector
Closure
Blank Cover
End Cap
