S-LINE LINEAR TRUNKING SYSTEM
Choose your product version
35W ON/OFF
50W ON/OFF
70W ON/OFF
100W ON/OFF
150W ON/OFF
35W DALI
50W DALI
70W DALI
100W DALI

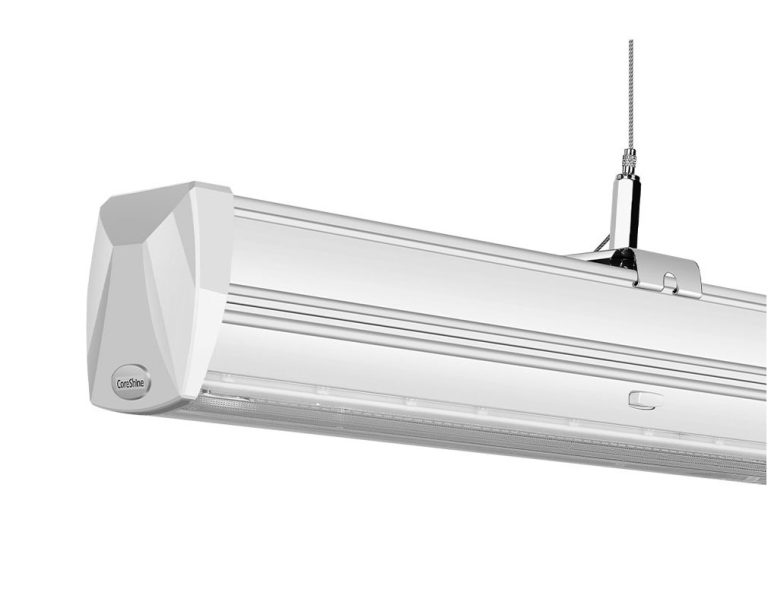

S-LINE LINEAR TRUNKING SYSTEM | 35W ON/OFF

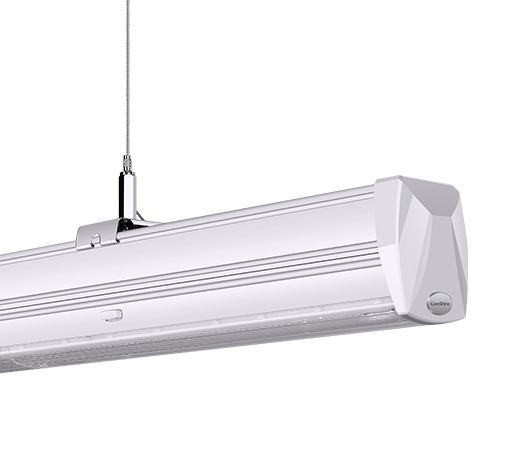

The Coreshine S-Line LED linear trunking system embraces its versatility and compatibility. Featuring multiple power input channels, lenses for different lighting directions, high energy efficiency, and a wide selection of expansion modules, it's suitable for any lighting needs under any circumstances.
Product benefits
- 1500mm - 20W / 25W / 30W / 35W DIP switch driver AC220-240V
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 50W ON/OFF
The CoreShine S-Line LED linear trunking system embraces its versatility and compatibility to the fullest. Featuring multiple power input channels, lenses for different lighting directions, high energy efficiency, and wide selection of expansion modules, this white linear pendant light is suitable for any lighting needs under any circumstances.
Product benefits
- 1500mm - 35W / 40W / 45W / 50W DIP switch driver AC220-240V
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Maximum total power up to 3500W per power continuous line
S-LINE LINEAR TRUNKING SYSTEM | 70W ON/OFF
The CoreShine S-Line LED linear trunking system embraces its versatility and compatibility to the fullest. Featuring multiple power input channels, lenses for different lighting directions, high energy efficiency, and wide selection of expansion modules, this white linear pendant light is suitable for any lighting needs under any circumstances.
Product benefits
- 1500mm - 55W / 60W / 65W / 70W DIP switch driver AC220-240V
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 100W ON/OFF
The CoreShine S-Line LED linear trunking system embraces its versatility and compatibility to the fullest. Featuring multiple power input channels, lenses for different lighting directions, high energy efficiency, and wide selection of expansion modules, this white linear pendant light is suitable for any lighting needs under any circumstances.
Product benefits
- 1500mm - 70W / 80W / 90W / 100W DIP switch driver AC220-240V
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 150W ON/OFF
The CoreShine S-Line LED linear trunking system embraces its versatility and compatibility to the fullest. Featuring multiple power input channels, lenses for different lighting directions, high energy efficiency, and wide selection of expansion modules, this white linear pendant light is suitable for any lighting needs under any circumstances.
Product benefits
- 2250mm/2400mm - 70W / 90W / 110W / 130W / 150W DIP switch driver AC220-240V
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 35W DALI
The CoreShine S-Line LED linear trunking system embraces its versatility and compatibility to the fullest. Featuring multiple power input channels, lenses for different lighting directions, high energy efficiency, and wide selection of expansion modules, this white linear pendant light is suitable for any lighting needs under any circumstances.
Product benefits
- 1500mm - 35W DALI2.0 DT6 AC220-240V
- Pre-wired trunking rail, plug & play, tool-free installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Emergency, Track spotlight module, Sensor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 50W DALI
The CoreShine S-Line LED linear trunking system embraces its versatility and compatibility to the fullest. Featuring multiple power input channels, lenses for different lighting directions, high energy efficiency, and wide selection of expansion modules, this white linear pendant light is suitable for any lighting needs under any circumstances.
Product benefits
- 1500mm - 50W DALI2.0 DT6 AC220-240V
- Pre-wired trunking rail, plug & play, tool-free installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Emergency, Track spotlight module, Sensor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 70W DALI
The CoreShine S-Line LED linear trunking system embraces its versatility and compatibility to the fullest. Featuring multiple power input channels, lenses for different lighting directions, high energy efficiency, and wide selection of expansion modules, this white linear pendant light is suitable for any lighting needs under any circumstances.
Product benefits
- 1500mm - 70W DALI2.0 DT6 AC220-240V
- Pre-wired trunking rail, plug & play, tool-free installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Emergency, Track spotlight module, Sensor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 100W DALI
The CoreShine S-Line LED linear trunking system embraces its versatility and compatibility to the fullest. Featuring multiple power input channels, lenses for different lighting directions, high energy efficiency, and wide selection of expansion modules, this white linear pendant light is suitable for any lighting needs under any circumstances.
Product benefits
- 1500mm - 100W DALI2.0 DT6 AC220-240V
- Pre-wired trunking rail, plug & play, tool-free installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Emergency, Track spotlight module, Sensor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
VIDEO DEMONSTRATION
Learn more details about the structure and functions of the S-Line LED linear trunking system through the following video
Browse the following components details and discover the comprehensive solutions the S-line brings
TECHNICAL DATA
VALUE
Luminaire colour
RAL9016 White，RAL9017 Black
Outer Dimension
L1500 * W70 * H76mm / L2400 * W70 * H76mm
Input Power
20-35W, 35-50W, 55-70W ( @ L1500mm, 5W/Gear )
70-100W ( @ L2400mm, 10W/Gear )
Input Voltage
220-240V
PF ( @230V, 50Hz, full load )
0.95
Luminous Efficacy
195lm/W
CCT
2700 / 3000 / 4000 / 5000 / 6000 / 6500K
CRI
>80Ra or >90Ra
SDCM
<3
Light Distribution Curve
SP-30°，NR-60°，WD-90°，FD-120°，L/R Asymmetric，DS-Double Asymmetric，FF-120° PC Diffuser
Function
on/off，DALI 2.0，1-10V
IP Level
IP40
Ambient Temperature Ta ( @life time 50,000 h)
-25 ~ 40°
Rated Life L80/B50 @25°C
100,000 hrs
Warranty
5 years
APPLICATION CASES
S-Line has been widely used in Supermarket, Warehouse, Workshop, Car Showroom, Data Center etc... Applications, Check some of real cases.
CONTACT US
CONTACT US
Bldg 6, Cereals Group Industrial Park, 299#, GuanPing Road, NanDaFu Community,GuanLan, LongHua District, ShenZhen, GuangDong, China
Tel:+86-755-2559 9666 Tel:+86-755--2962 5810
Fax:+86-755--2557 76666
E-mail:[email protected]
ABOUT US
- PROFILE
- QUALITY
PRODUCTS
- EUROPE
- AMERICA
- SMART CONTROL
- NEW
PROJECTS
- COMMERCIAL
- INDUSTRIAL
- AUTO INDUSTRY
- OTHERS
CONTACT
VIDEO
SHENZHEN CORESHINE OPTOELECTRONICS CO.,LTD

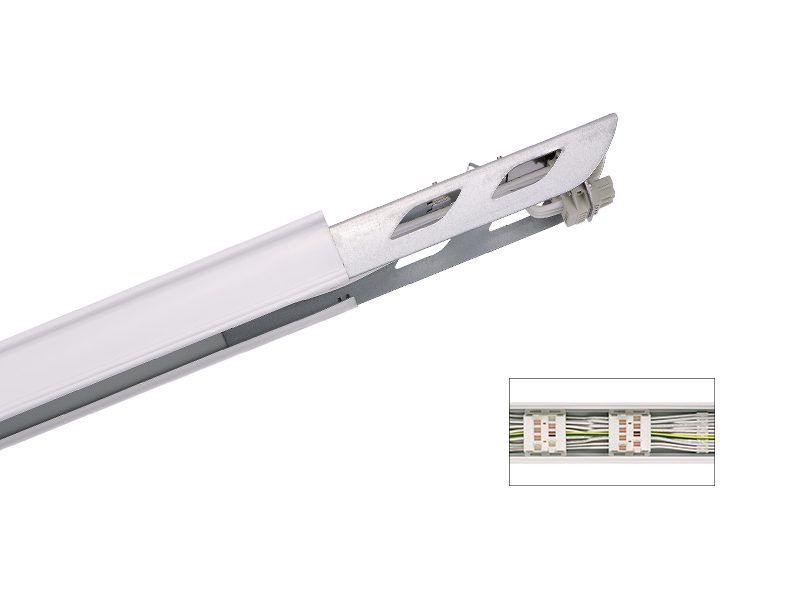

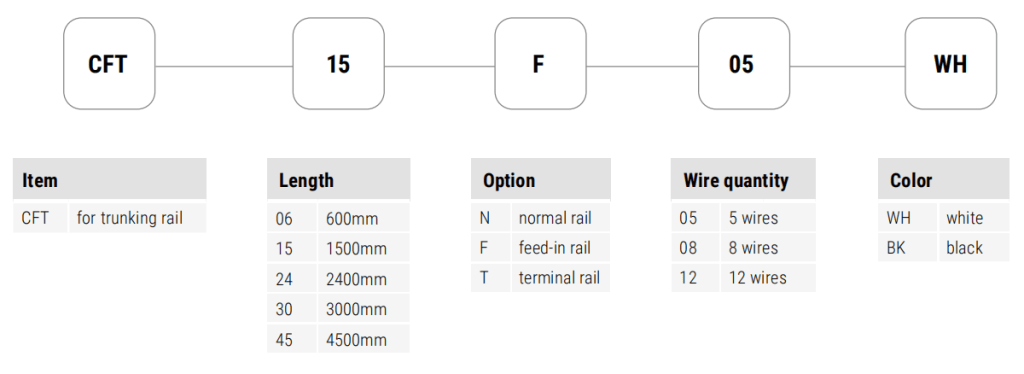

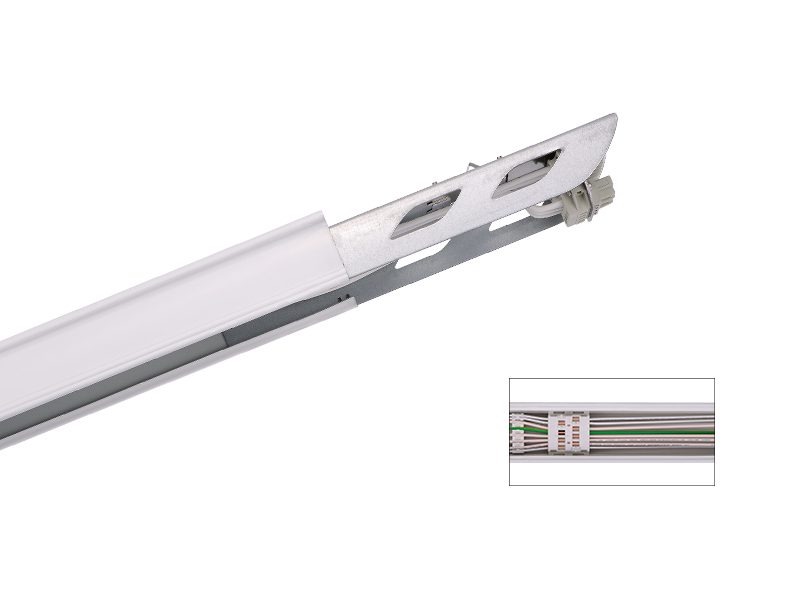

TRUNKING RAIL
5 WIRE
- L1 L2 L3 N PE
- 5*2.5mm²
- 3 phase selectable
- on/off basic lighting
8 WIRE
- L1 L2 L3 N PE D+ D- CHR
- 6*2.5 mm² + 2*1.5 mm²
- 3 phase selectable
- 2 DALI control cables
- 1 internal battery emergency power supply
12 WIRE
- L1 L2 L3 N PE D+ D- CHR EL1 EN1 EL2 EN2
- 10*2.5 mm² + 2*1.5 mm²
- 3 phase selectable
- 2 DALI control cables
- 1 internal battery emergency power supply
- 2 independent emergency power supply circuits

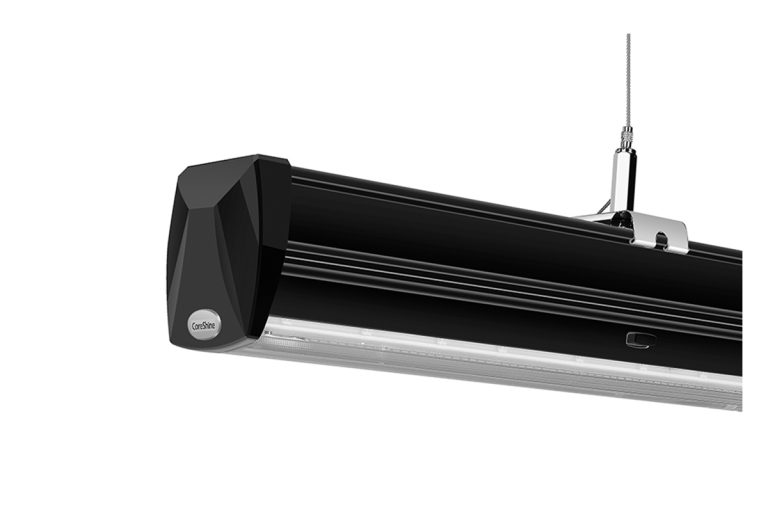

LUMINAIRE

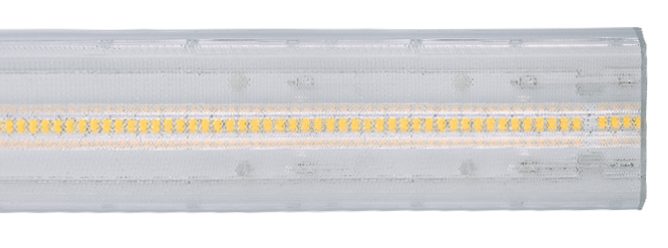

Central.Line.Optic
- IK04
- Light Transmittance 93%
- SP-30° / NR-60° / WD-90° / FD-120° / LS / RS / DS
Diffuser
- IK08
- Light Transmittance 86%
- FF-120°
FUNCTION MODULE

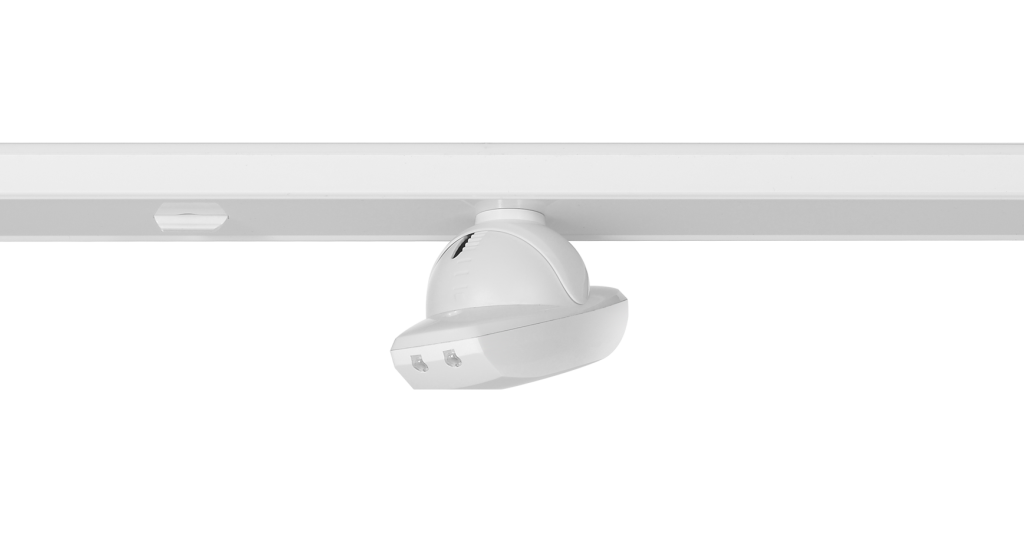

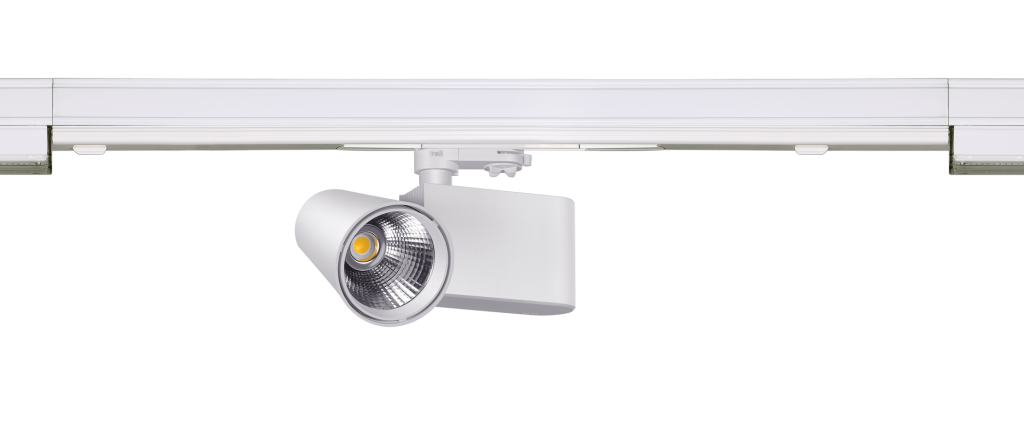

Spotlight Module
- Plug & Play function module
- Integrated with universal 3/4/6 wire track rail
- Size in 600,1500mm module
- Ideal for combining accent and general lighting
Sensor Module
- Plug & Play function module
- Microwave sensor for motion detection
- Detective range up to 8m or 15m optional
- Uses existing DALI or 1-10V rail wiring

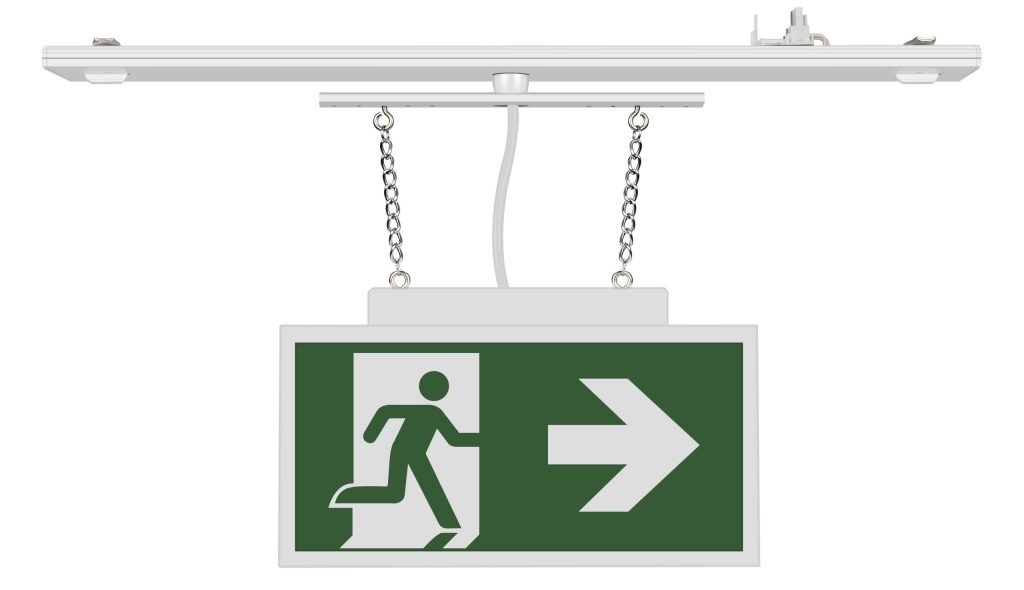

Exit Sign Module
- Plug & Play function module
- Flexible structure to hang exit sign
- Uses existing rail wiring
ACCESSORIES
Power Feed In

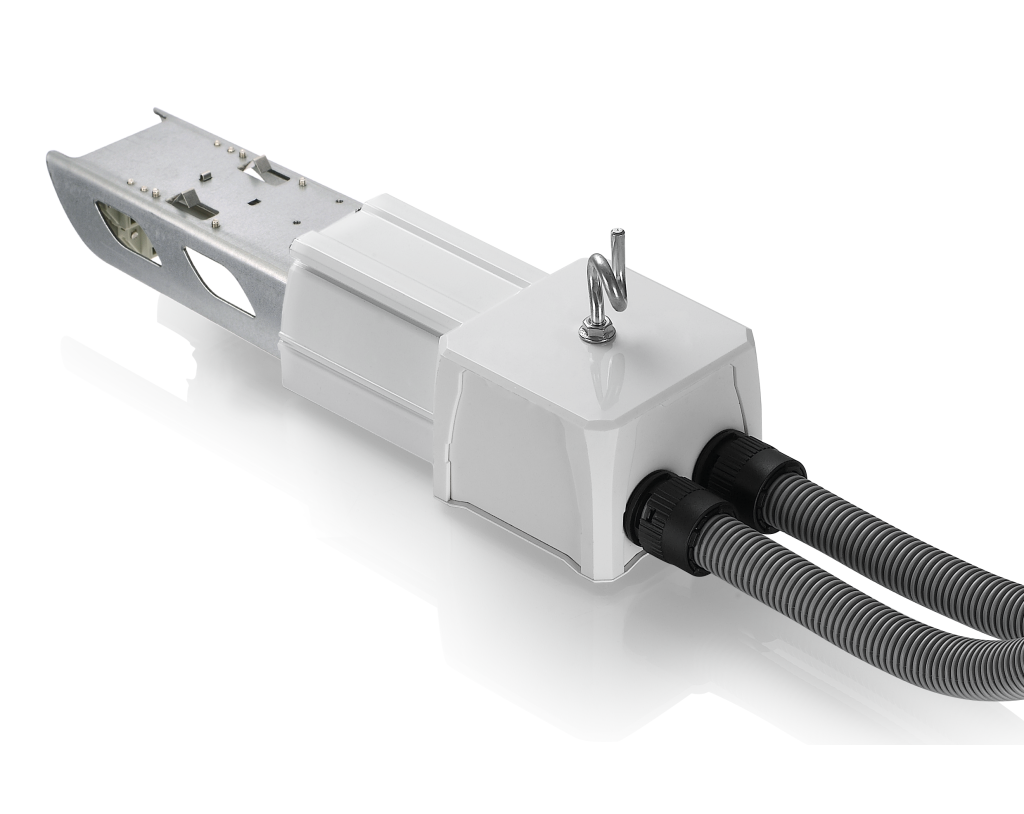

Feed In Box

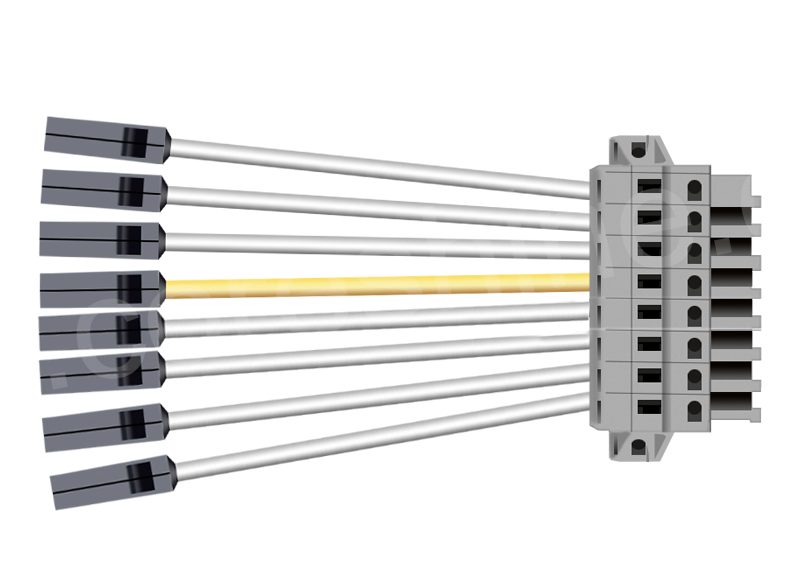

Feed In Connector
Mounting Kit

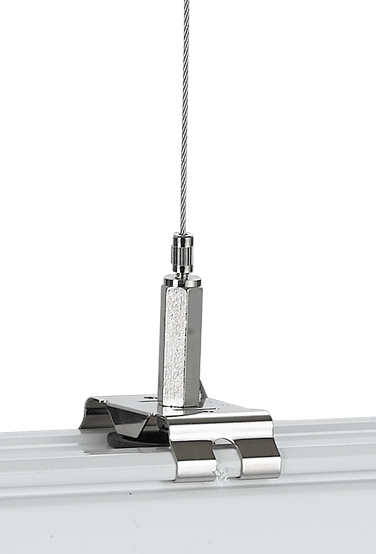

Suspension Cord

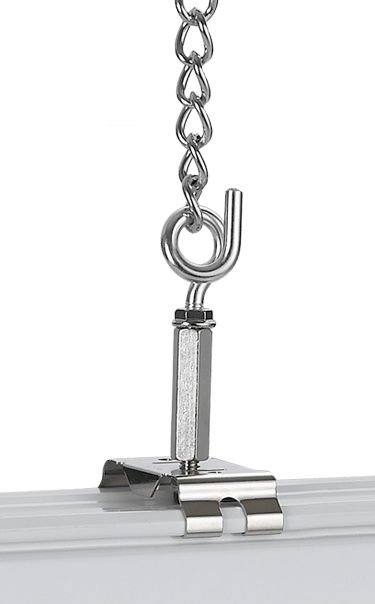

Suspension Chain

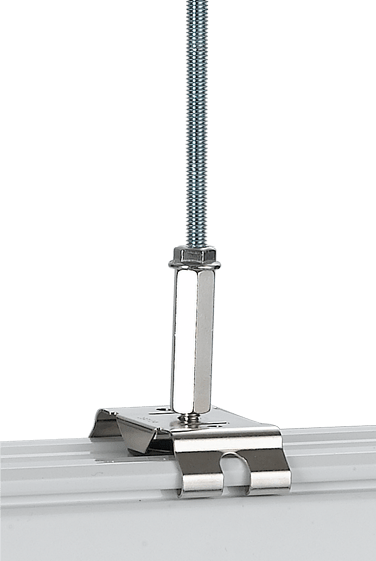

Suspension Rod

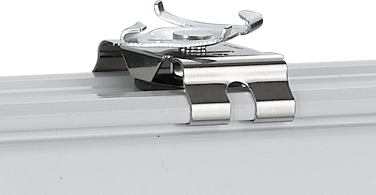

Surface Mounted
Node Connector

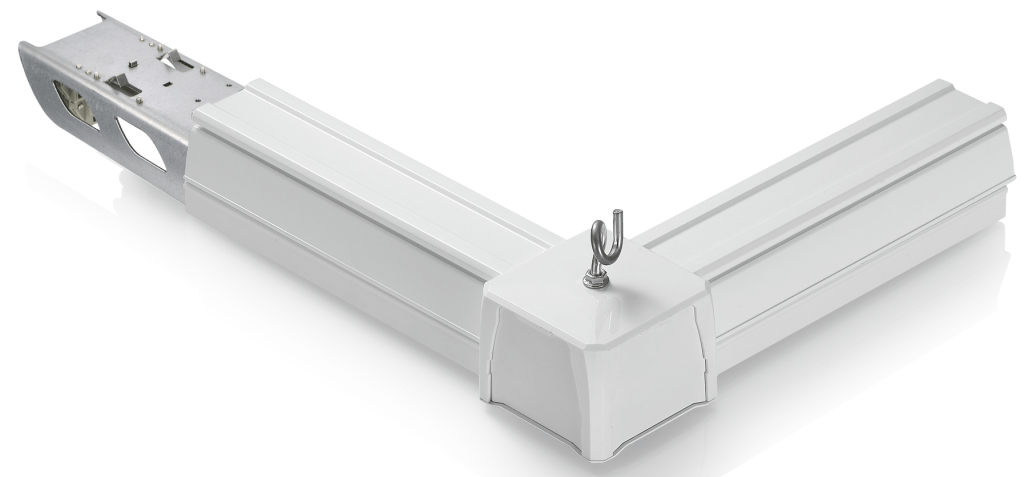

L Connector

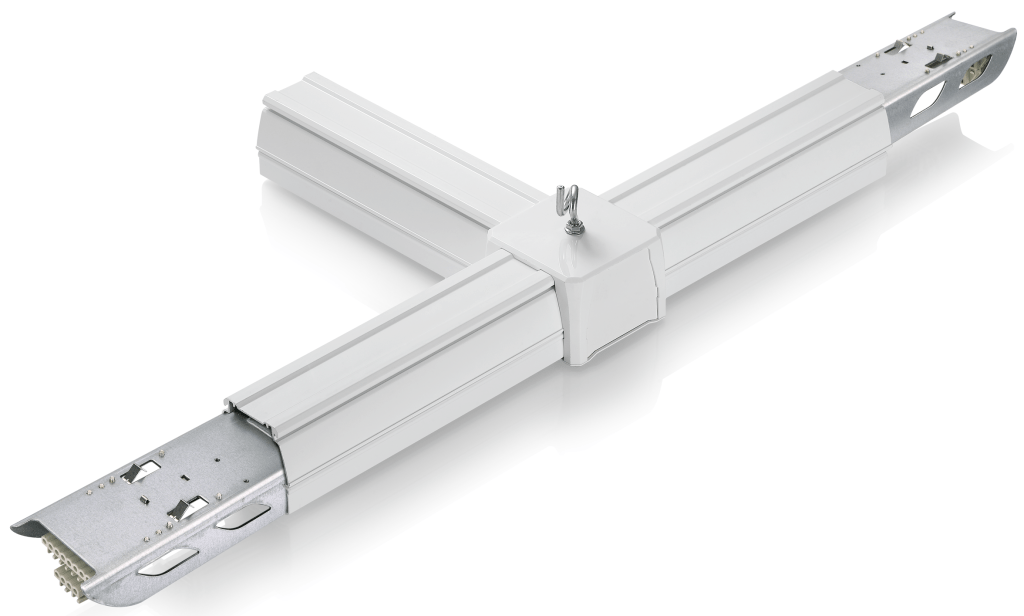

T Connector

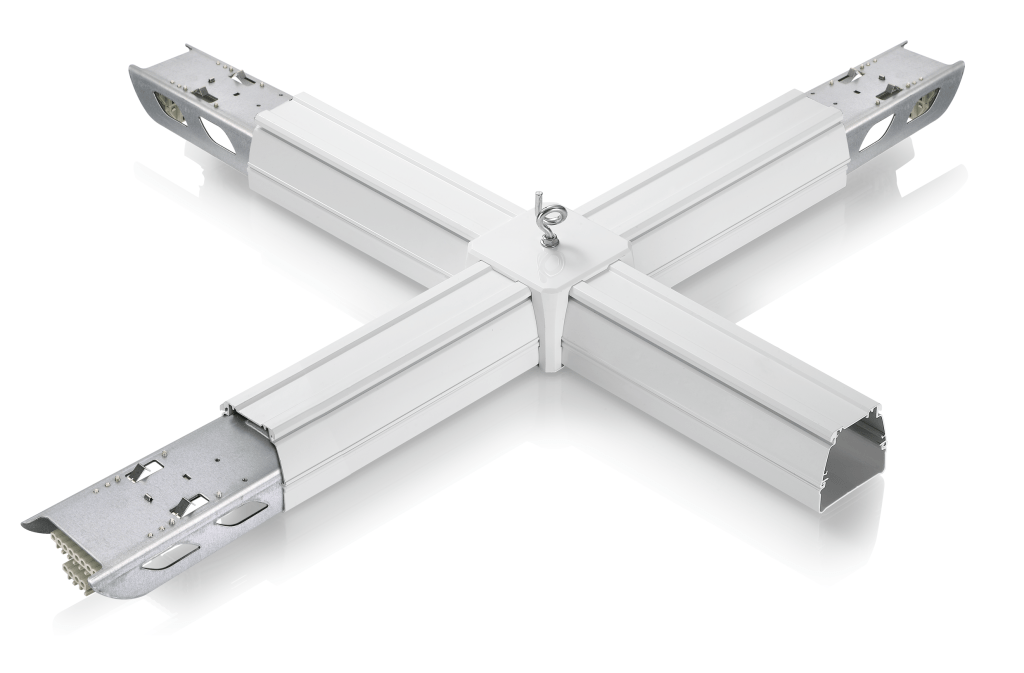

X Connector
Closure

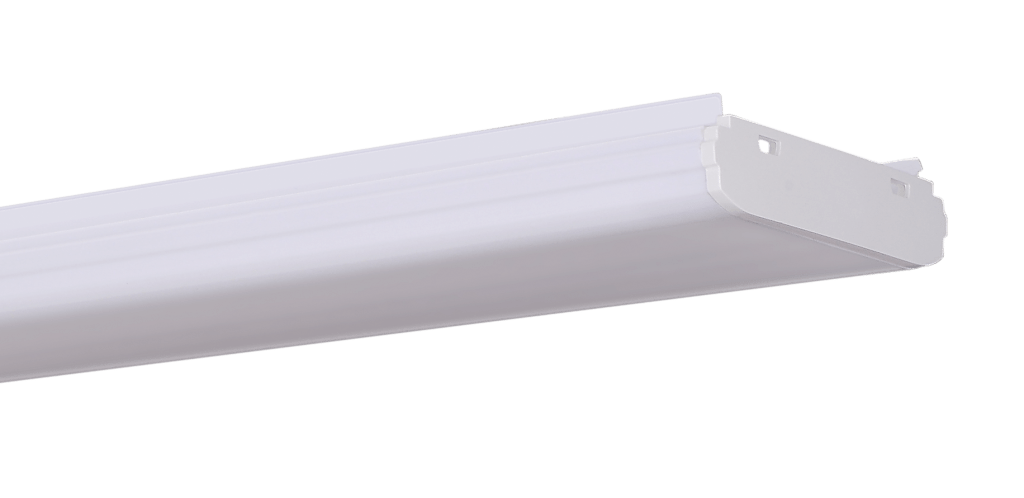

Blank Cover

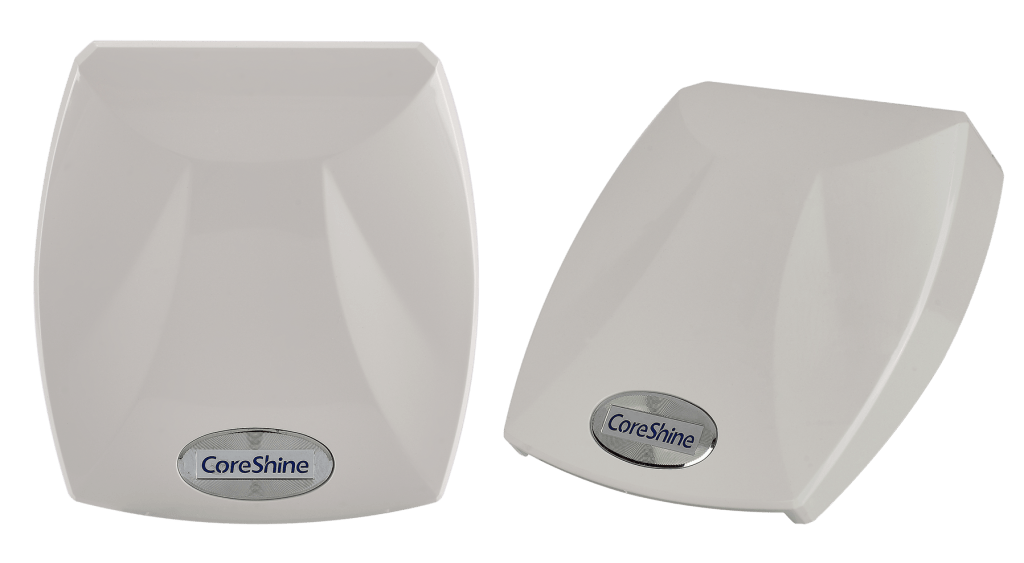

End Cap
